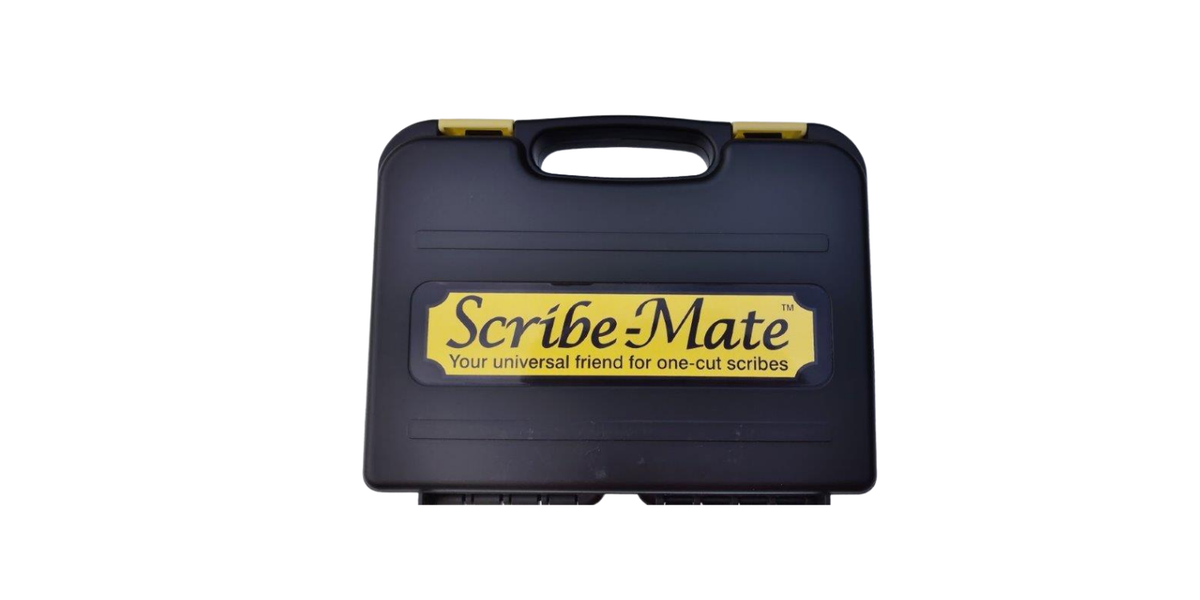

The Correct Way to Use Scribe-Mate for One-Cut Scribes

Accurate scribing is one of the most important steps in achieving a clean, professional finish when fitting kitchens, wardrobes or built-in furniture. Uneven walls, out-of-square rooms and stepped cabinet panels are part of everyday site work, and poor scribing usually comes down to movement before the cut is made.

The Scribe-Mate system is designed to remove that movement. By securing the scribe fillet correctly, it allows accurate marking and true one-cut scribes across side, top and bottom panels. This guide explains how to use Scribe-Mate properly, when to use two jigs, when to introduce a third, and how to deal with stepped cabinets using shims.

https://cdn.shopify.com/s/files/1/0938/2710/5151/files/users_guide_compressed.pdf?v=1767001994

Using Scribe-Mate for Side Scribes

Side scribes are completed by securing the fillet using the Scribe-Mate jigs so it cannot flex or move while being marked. Before offering the fillet to the jigs, the location plate must be removed. This allows the fillet to sit correctly and ensures the scribe line remains consistent.

For cabinets with pre-drilled hinge plate holes, the jigs are used with 5mm holes. For cabinets without pre-drilled holes, the jigs are used with 3mm holes, with the jig shoulders positioned into the cabinet corners. In all cases, the location pins must face into the cabinet to ensure correct alignment.

For longer side scribes, a third jig can be added to maintain stability along the full length of the fillet.

---

Top and Bottom Scribing

Scribe-Mate jigs can also be used to secure top and bottom scribes using the same principles. The location plate should be removed before positioning the fillet, and a third jig can be introduced where the length of the scribe requires additional support.

By holding the fillet securely, the jigs allow the scribe line to be marked accurately in a single pass before cutting, reducing the need for trimming or adjustments after fitting.

---

When to Use a Third Jig

Most scribes can be completed using two jigs, which is why this is the standard setup for the majority of installations. When working with longer fillets, adding a third jig provides additional stability and ensures the fillet remains fixed along its entire length while marking.

Using a third jig is not about complexity — it is simply about maintaining control on longer runs.

---

Overcoming the Step Problem

It is common for cabinets to have a small step between side panels and top or bottom panels. If not handled correctly, this can lead to inaccurate scribes.

To overcome this, first establish the size of the step. Select shims of identical thickness and place them between each jig and the fillet. This compensates for the difference in panel height and allows the scribe line to be marked accurately across the entire length. Once marked, the fillet can be cut and fitted cleanly.

---

Designed for One-Cut Accuracy

The Scribe-Mate system is designed to remove movement before the cut is made. By securing the fillet properly, it allows for true one-cut scribes, saving time and reducing material waste.

Used correctly, the system delivers consistent spacing, accurate marking and clean finishes across a wide range of real-world fitting scenarios.
